arkanoid

providers / raylib

program
load core::c::*;
load provider::raylib;

val WIDTH: float = 800.0;
val HEIGHT: float = 600.0;
val FPS: int = 60;

-- The black color.
val COLOR_BLACK: int = 0xFF000000;
-- The white color.
val COLOR_WHITE: int = 0xFFFFFFFF;
-- The red color.
val COLOR_RED: int = 0xFF4D4DFF;
-- The blue color.
val COLOR_BLUE: int = 0xFFEFD966;
-- The green color.
val COLOR_GREEN: int = 0xFF3EFDCC;

-- raylib `KEY_*` codes.
val KEY_RIGHT: int = 262;
val KEY_LEFT: int = 263;
val KEY_ENTER: int = 257;

struct Vec2 {
  x: float,
  y: float,
}

struct Ball {
  pos: Vec2,
  vel: Vec2,
  radius: float,
}

struct Paddle {
  pos: Vec2,
  w: float,
  h: float,
  speed: float,
}

struct Brick {
  pos: Vec2,
  w: float,
  h: float,
  active: bool,
  color: int,
}

-- Clamp `value` into `[min, max]`.
fun clamp(value: float, min: float, max: float) -> float {
  if value < min {
    min
  } else if value > max {
    max
  } else {
    value
  }
}

-- Absolute value.
fun abs(value: float) -> float {
  if value < 0.0 {
    -value
  } else {
    value
  }
}

-- Circle-vs-AABB test. 0 = no hit, 1 = flip Y (top/bottom edge),
-- 2 = flip X (side edge). The smaller penetration axis is the
-- edge the ball crossed.
fun check_collision(ball: Ball, brick: Brick) -> int {
  imu closest_x: float =
    clamp(ball.pos.x, brick.pos.x, brick.pos.x + brick.w);
  imu closest_y: float =
    clamp(ball.pos.y, brick.pos.y, brick.pos.y + brick.h);

  imu distance_x: float = ball.pos.x - closest_x;
  imu distance_y: float = ball.pos.y - closest_y;
  imu dist_sq: float = distance_x * distance_x + distance_y * distance_y;

  if dist_sq < ball.radius * ball.radius {
    imu overlap_x: float = ball.radius - abs(distance_x);
    imu overlap_y: float = ball.radius - abs(distance_y);

    if overlap_x < overlap_y {
      2
    } else {
      1
    }
  } else {
    0
  }
}

-- A fresh 5×10 brick grid, rows alternating red and blue.
fun spawn_bricks() -> Vec<Brick> {
  mut bricks: Vec<Brick> = Vec::new();

  for r := 0..5 {
    imu even_row: bool = r % 2 == 0;
    imu row_color: int = when even_row ? COLOR_RED : COLOR_BLUE;

    for c := 0..10 {
      bricks.push(Brick {
        pos = Vec2 {
          x = 45.0 + (c as float) * 72.0,
          y = 50.0 + (r as float) * 25.0,
        },
        w = 70.0,
        h = 20.0,
        active = true,
        color = row_color,
      });
    }
  }

  bricks
}

-- The ball's starting state: centered, drifting up-left.
fun new_ball() -> Ball {
  Ball {
    pos = Vec2 { x = 400.0, y = 300.0 },
    vel = Vec2 { x = 3.0, y = -4.0 },
    radius = 8.0,
  }
}

fun main() {
  raylib::init_window(WIDTH as int, HEIGHT as int, CStr::new("zo arkanoid"));
  raylib::set_target_fps(FPS);

  mut paddle: Paddle = Paddle {
    pos = Vec2 { x = 360.0, y = 550.0 },
    w = 80.0,
    h = 15.0,
    speed = 360.0,
  };

  mut ball: Ball = new_ball();
  mut bricks: Vec<Brick> = spawn_bricks();
  mut game_over: bool = false;

  loop {
    if raylib::window_should_close() { break }

    imu dt: float = raylib::get_frame_time();

    if !game_over {
      -- move the paddle, clamped inside the screen.
      if raylib::is_key_down(KEY_LEFT) { paddle.pos.x -= paddle.speed * dt }
      if raylib::is_key_down(KEY_RIGHT) { paddle.pos.x += paddle.speed * dt }

      paddle.pos.x = clamp(paddle.pos.x, 0.0, WIDTH - paddle.w);

      -- advance the ball, bounce off the walls, die at the floor.
      ball.pos.x += ball.vel.x;
      ball.pos.y += ball.vel.y;

      if ball.pos.x - ball.radius < 0.0 || ball.pos.x + ball.radius > WIDTH {
        ball.vel.x = -ball.vel.x;
      }

      if ball.pos.y - ball.radius < 0.0 {
        ball.vel.y = -ball.vel.y;
      }

      if ball.pos.y + ball.radius > HEIGHT {
        game_over = true;
      }

      -- ball vs paddle: bounce up, steer by where it landed.
      imu paddle_box: Brick = Brick {
        pos = paddle.pos,
        w = paddle.w,
        h = paddle.h,
        active = true,
        color = 0,
      };

      if check_collision(ball, paddle_box) > 0 {
        imu paddle_center: float = paddle.pos.x + paddle.w / 2.0;

        ball.vel.y = -abs(ball.vel.y);
        ball.vel.x += (ball.pos.x - paddle_center) * 0.15;
      }

      -- ball vs bricks: break the first one hit, bounce off it.
      mut brick_index: int = 0;

      while brick_index < bricks.len() {
        mut hit: bool = false;

        match bricks.get(brick_index) {
          Option::Some(brick) => {
            if brick.active {
              imu hit_type: int = check_collision(ball, brick);

              if hit_type > 0 {
                imu broken: Brick = Brick {
                  pos = brick.pos,
                  w = brick.w,
                  h = brick.h,
                  active = false,
                  color = brick.color,
                };

                bricks.set(brick_index, broken);

                if hit_type == 1 { ball.vel.y = -ball.vel.y; }
                if hit_type == 2 { ball.vel.x = -ball.vel.x; }

                hit = true;
              }
            }
          }
          Option::None => {}
        }

        if hit { break } else { brick_index += 1; }
      }
    } else if raylib::is_key_pressed(KEY_ENTER) {
      -- restart: recenter the ball, respawn the grid.
      game_over = false;
      ball = new_ball();
      bricks.free();
      bricks = spawn_bricks();
    }

    raylib::begin_drawing();
      raylib::clear_background(COLOR_BLACK);

      -- bricks: the active ones in their row color.
      for draw_index := 0..bricks.len() {
        match bricks.get(draw_index) {
          Option::Some(brick) => {
            if brick.active {
              raylib::draw_rectangle(
                brick.pos.x as int,
                brick.pos.y as int,
                brick.w as int,
                brick.h as int,
                brick.color,
              );
            }
          }
          Option::None => {}
        }
      }

      -- paddle: a green bar.
      raylib::draw_rectangle(
        paddle.pos.x as int,
        paddle.pos.y as int,
        paddle.w as int,
        paddle.h as int,
        COLOR_GREEN,
      );

      -- ball: a white dot.
      raylib::draw_circle(
        ball.pos.x as int,
        ball.pos.y as int,
        ball.radius,
        COLOR_WHITE,
      );

      if game_over {
        raylib::draw_text(CStr::new("GAME OVER"), 300, 260, 40, COLOR_RED);
        raylib::draw_text(CStr::new("PRESS ENTER"), 312, 312, 20, COLOR_WHITE);
      }

      raylib::draw_fps(10, 10);
    raylib::end_drawing();
  }

  bricks.free();
  raylib::close_window();
}

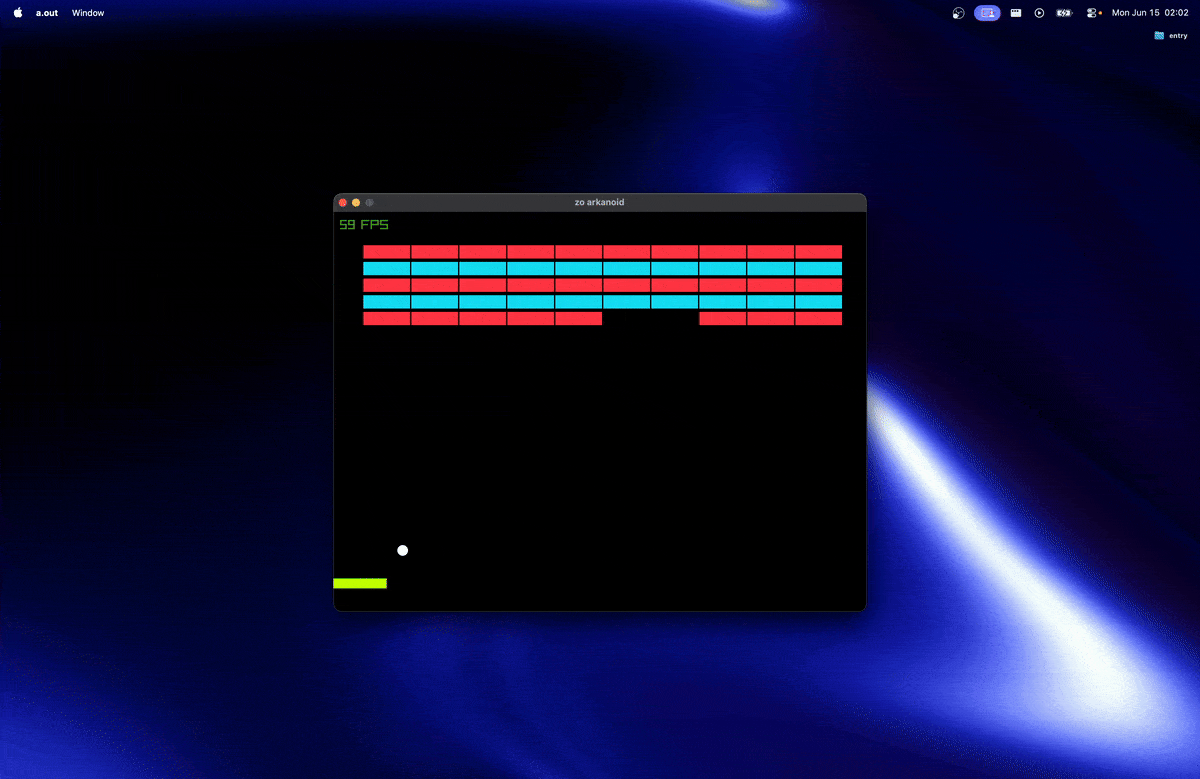

arkanoid preview
